Equipment and workshop


★★★★★

Pcbamake has more than 26 years of PCB fabrication history and always offer the highest level of service and quality.With our own professional equipment, testing facilities and daily research and development by more than 40 professional engineers,we have been ahead of our competitors.Our PCB production capacity can reach 40000 sq.m. per month and PCB assembling capacity at 15,000,000 components per month.


pcba equipment 1
pcba equipment 2

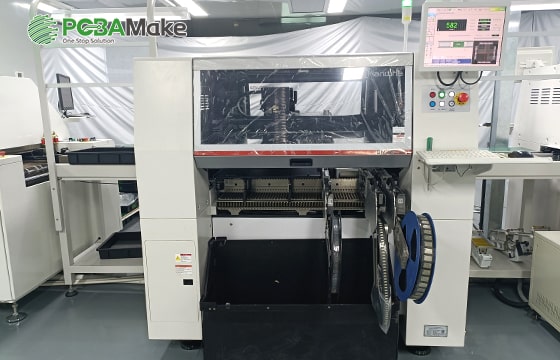

pcba equipment 3

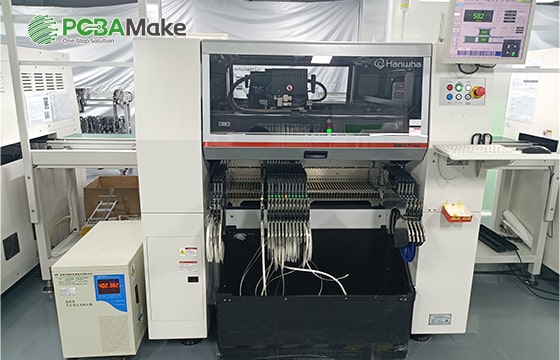

pcba equipment 4
pcba equipment 5

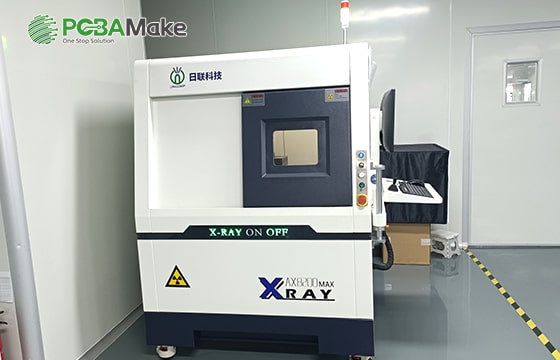

pcba equipment 6
pcba equipment 7
pcba equipment 8

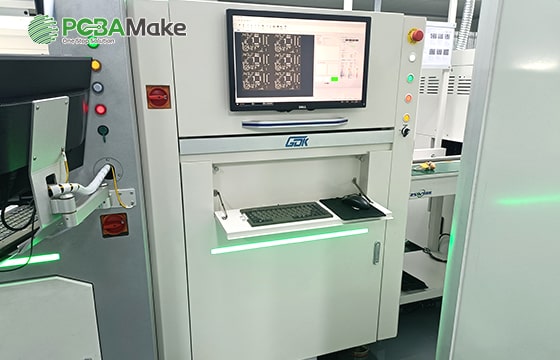

pcba equipment 9

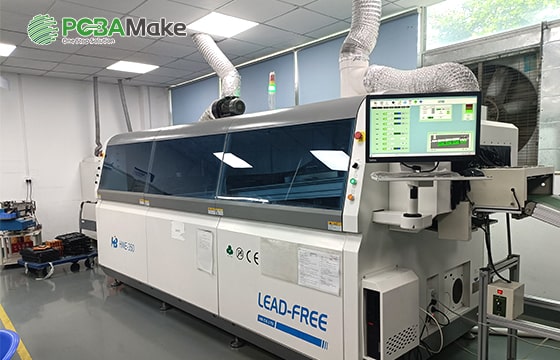

pcba equipment 10

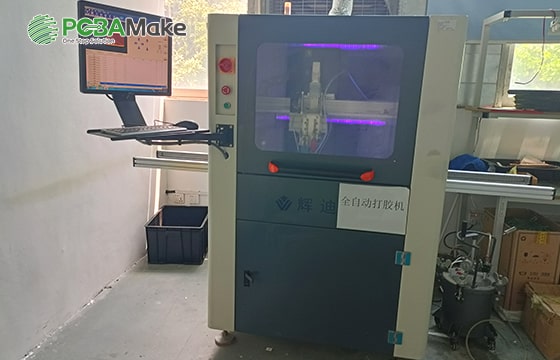

pcba equipment 11

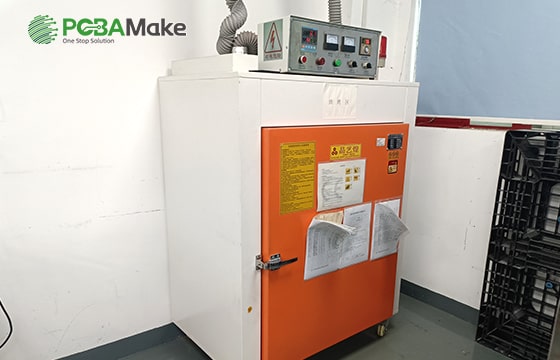

pcba equipment 12
pcba equipment 13
pcba equipment 14
pcba equipment 15
pcba equipment 16

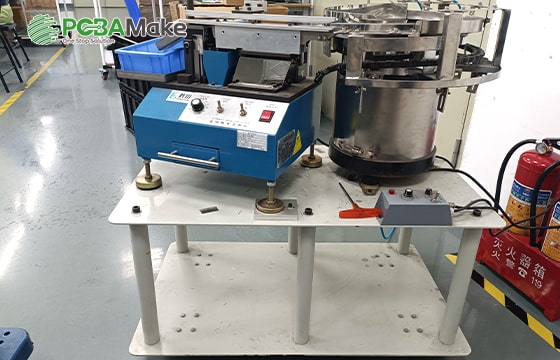

pcba equipment 17
pcba equipment 19

SMT PCB Assembly Equipment Details


★★★★★

Number Equipment English model Brand

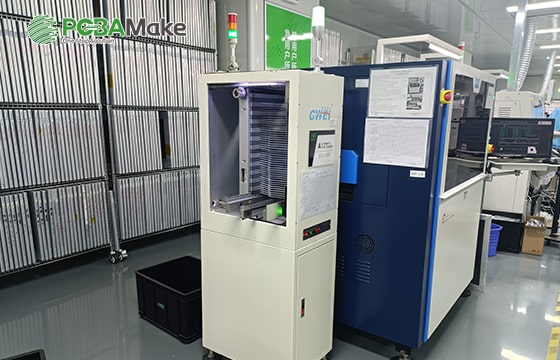

1 Automatic loading machine GW-01 GUOWEI

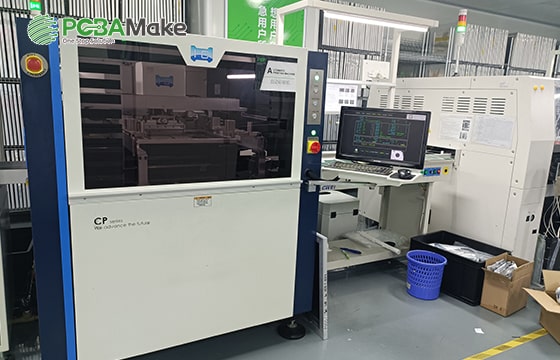

2 Solder Printing Machine cp-400 CP
3 Medium speed placement machine SM481PLUS Samsung

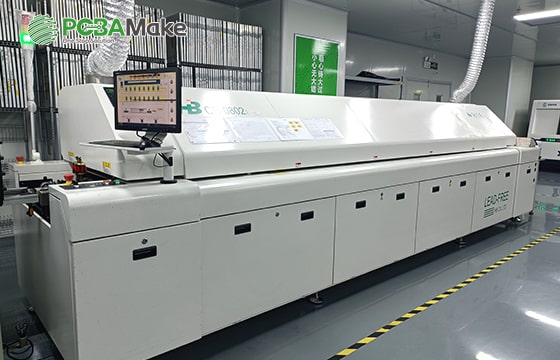

4 Reflow soldering Machine CR-0802 HELLER
5 Voltage stabilizer MZVC-15KVA MK
6 Voltage stabilizer MZVC-15KVA MK
7 Automatic loading machine ZCW-02 ZSW
8 Solder Printing Machine GDK-X5 HTGD
9 High Speed Placement Machine SM471PLUS Samsung
10 Medium speed placement machine SM481PLUS Samsung
11 Reflow soldering Machine CR-1002 HELLER
12 Solder Printing Inspection RX HTGD
13 Air compressor

14 Oven 100 JYH
Number Equipment English model Brand
15 Solder Paste Mixer GW-JB90A GUOWEI

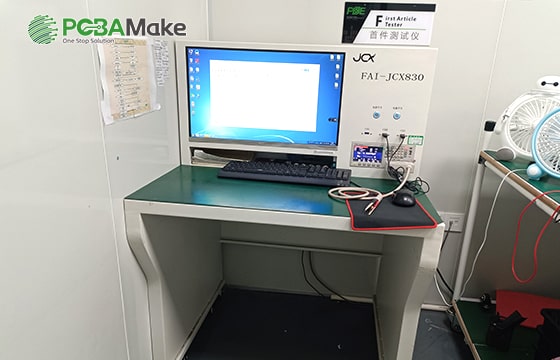

16 First Article Inspection FAI-JCX830 JCY

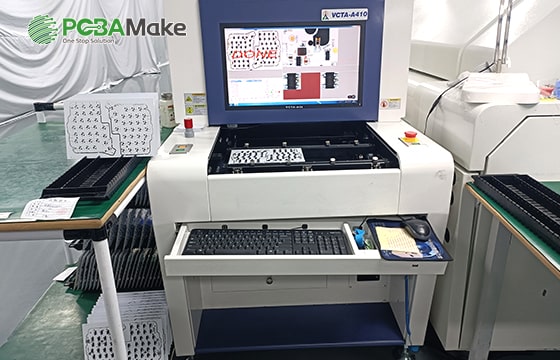

17 Automatic Optic Inspection Machine VCTA-A410 VCTA
18 Xray Machine
Unicomp
19 Wave Soldering Machine HWE-350 JieBao

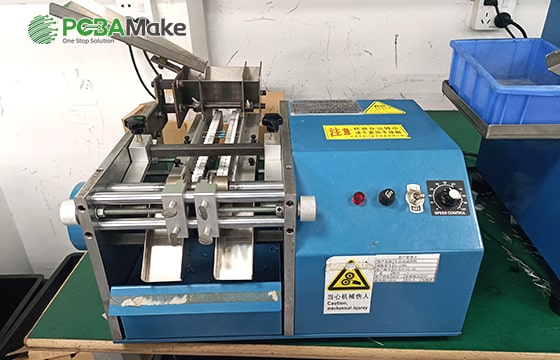

20 Fully automatic forming machine SC-104A ShengChuan
21 automatic forming machine SC-104C ShengChuan
22 Semi-automatic forming machine SC-106A ShengChuan
23 Manual Washer
jIETUO
24 Automatic Coating machine
YdiHUI

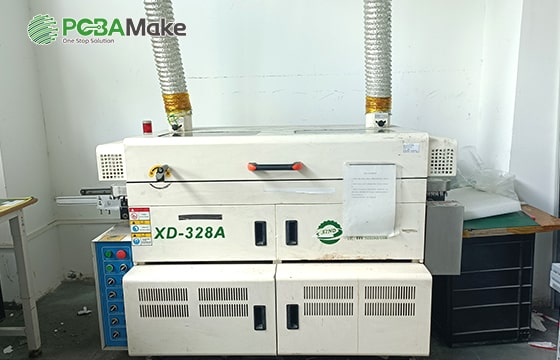

25 Automatic Washer XD-328A XinDong
26 Automatic packing machine High -platform dual machine Suhuatian

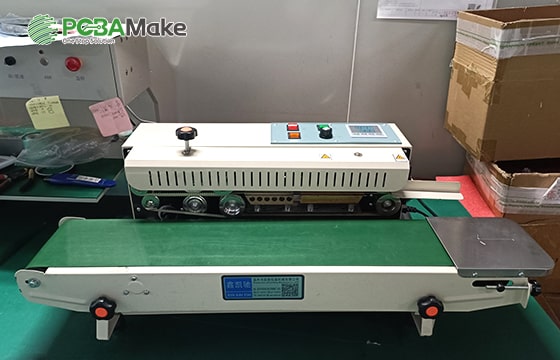

27 Automatic sealing machine FR-900 RuiLi
28 Fully automatic vacuum packaging machine 500type Ruichi

FAQ

Q

How long have you been making PCB&PCBA?

A

PCBAMake has been making PCBs for more than 26 years.We built our assembly plant and begin assembly business in 1996.

Q

How do I get a quick quote for PCB or PCB assembly?

A

Please send your files and requirements to Orders@pcbamake.com.Quote will be sent back as soon as we get through an evaluation.

Q

Do you cater SMT prototype boards?

A

Yes, we are fully equipped to handle your any kind of custom SMT prototype board requirements.MOQ is 10 PCS.

Q

What files and documents do you request for my PCBA orders?

A

To ensure accurate and efficient assembly, we require Gerber files (including all layers), a complete Bill of Materials (BOM) in Excel format, Centroid data (Pick and Place file), and any additional requirements or assembly instructions if applicable.
