What is PCBA testing?

PCBA testing is a critical quality control process that validates the functionality, reliability, and manufacturability of assembled circuit boards. It involves a series of electrical, functional, and environmental checks to detect defects such as short circuits, open connections, component failures, or firmware issues before mass production.

Our strengths in PCBA Testing——Prevents Costly Failures

  • Visual inspection: general quality check.
  • FAI: full quality check applied to the first PCB to pass through all stages of production.
  • X-ray Inspection: checks for BGAs, QFN and bare circuit boards.
  • AOI Testing: checks for solder paste, 0201 components, missing components and polarity.
  • 3D AOI Testing: checks for missing and misplaced SMT components in three dimensions.
  • 3D SPI Testing: measures the precise volume of solder paste for SMT assembly.
  • ICT (In-Circuit Test): Precision Electrical Validation
  • Functional test: (Following your test procedures)
In-Circuit Test
Flying Probe Test

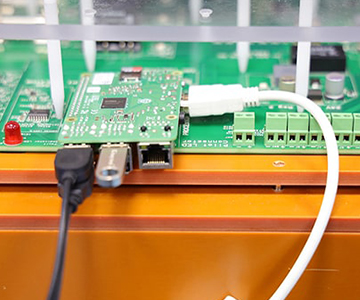

Functional Test

Online Testing (ICT)

  • In-Circuit Test (ICT) – Precision Electrical Validation
  • What it checks:
  • Short circuits, open connections
  • Incorrect component values (resistors, capacitors, etc.)
  • Missing or misaligned parts
  • Key Advantages:
  • ✔ High Accuracy – Detects even minor electrical deviations.
  • ✔ Fast & Scalable – Ideal for high-volume production.
  • ✔ Early Defect Detection – Reduces rework costs.
  • Best for: Mass-produced boards requiring strict electrical compliance.
Step 1

Advantages of SPI (Solder Paste Inspection) – Precision Solder Control

SPI is the first line of defense in SMT production, ensuring perfect solder paste deposition before components are placed. By catching printing defects early, it significantly improves first-pass yield and reduces costly post-reflow repairs.

  • What it checks:
  • Solder paste volume, height, and coverage
  • Misprints, bridging, or insufficient deposition
  • EStencil alignment accuracy
  • Key Advantages:
  • ✔ Prevents SMT Defects Early – Catches paste issues before reflow, reducing rework.
  • ✔ 3D Measurement Technology – Accurately analyzes paste thickness and shape.
  • ✔ Process Optimization – Provides data to fine-tune stencil design and printing parameters.
  • ✔ High-Speed Inspection – Scans boards in seconds without slowing production.
  • Best for: High-density PCB assemblies (0201/01005 components, fine-pitch BGAs) High-reliability applications where solder joint quality is critical

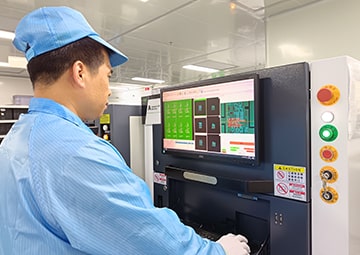

SPI test
AOI testing

Automated Optical Inspection (AOI) – High-Speed Defect Detection

  • What it checks:
  • Solder joint quality (bridges, voids, insufficient solder)
  • Component placement (misalignment, polarity errors)
  • Surface defects (scratches, contamination)

  • Key Advantages:
  • ✔ Non-Contact & Fast – Scans boards in seconds.
  • ✔ Consistent & Repeatable – Eliminates human error.
  • ✔ Works with Miniature Components – Detects defects in 01005-sized parts.

  • Best for: High-speed production lines (SMT assembly).

X-Ray Inspection – Hidden Defect Detection

  • What it checks:
  • X-Ray Inspection – Hidden Defect Detection
  • Voids, cracks, or misalignment in internal connections

  • Key Advantages:
  • ✔ See Through Components – Inspects what AOI can’t.
  • ✔ Critical for High-Reliability Products – Medical, automotive, aerospace.

  • Best for: Complex assemblies with concealed solder joints.
X-ray test
Environmental & Reliability Testing

Environmental & Reliability Testing – Stress Testing for Durability

  • What it checks:
  • Temperature cycling (-40°C to +125°C)
  • Vibration, shock, humidity resistance
  • Long-term operational stability

  • Key Advantages:
  • ✔ Simulates Harsh Conditions – Ensures survival in extreme environments.
  • ✔ Reduces Field Failures – Critical for automotive, military, and medical devices.

  • Best for: Mission-critical applications requiring long-term reliability.

Why Our PCBA Testing Stands Out?

  • Result: Higher yield, lower failure rates, and dependable end products.
  • ✔ Comprehensive Coverage – From electrical checks to real-world simulation.
  • ✔ Advanced Equipment – High-precision ICT, AOI, X-Ray, and FCT systems.
  • ✔ Industry Compliance – Meets IPC, ISO, and automotive standards.
  • ✔ Faster Time-to-Market – Automated testing reduces delays.

  • Best for: Complex assemblies with concealed solder joints.
PCBA test
